novatec^®
Gaskets made from fiber and graphite

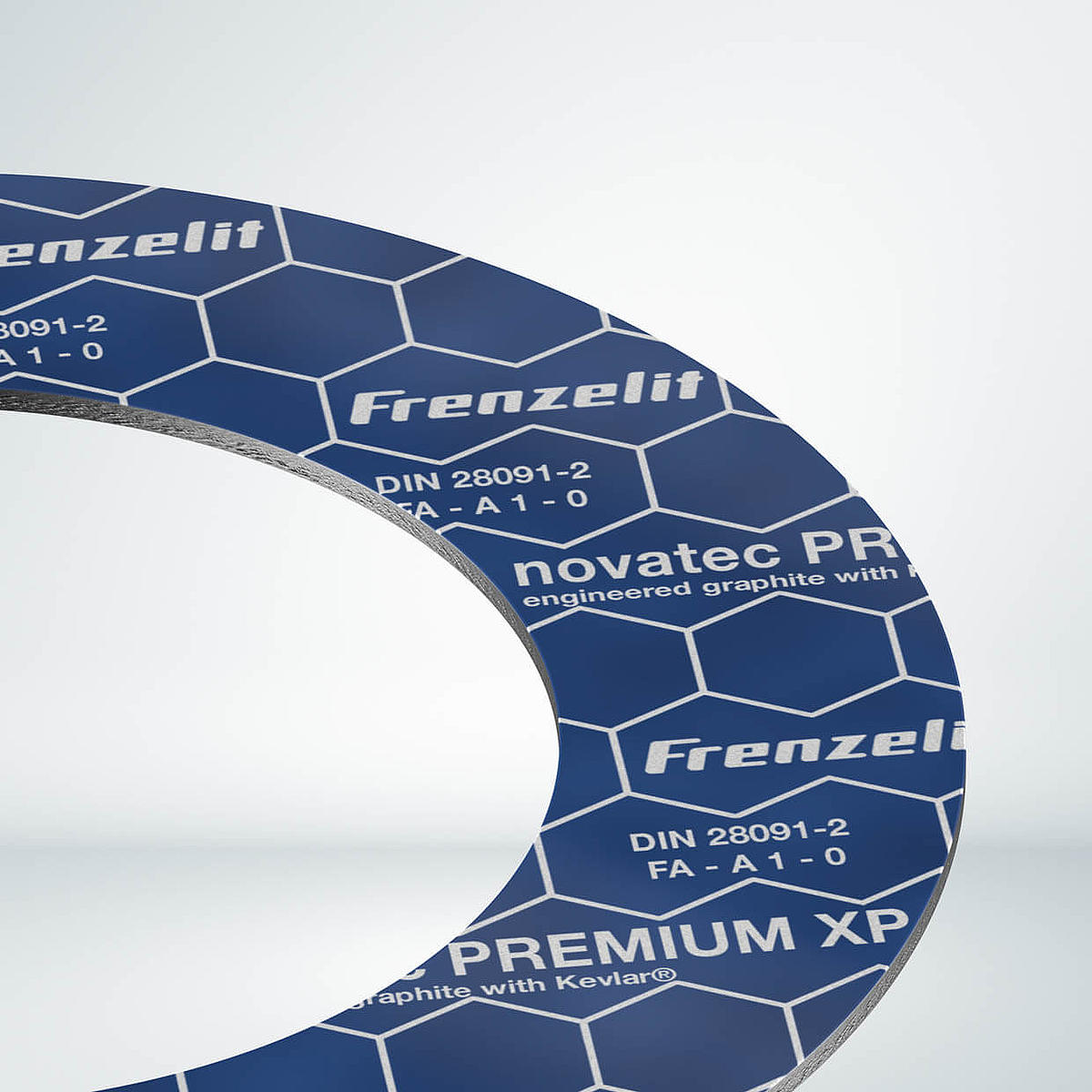

Thanks to their high graphite content, novatec^® PREMIUM XP gasket solutions feature:

• Temperature resistance up to approx. 250 °C
• Very good media resistance
• Very good residual stress.

Their optimized graphite morphology gives novatec^® PREMIUM XP gasket solutions much lower leakage rates with standard surface pressures. novatec^® PREMIUM XP gaskets come standard with a royal blue anti-stick coating, which functions reliably over the entire temperature range.

Custom geometries made from novatec^® 825 are also characterized by their residual stress and adaptability. They are generally used in systems and modules subject to high thermal loads.

novatec^® 825 gasket solutions are used everywhere media-conducting systems (e.g. oil, water, steam, weak acids and alkalis) must work reliably and with low loss at high temperatures (max. 250 °C).

novatec^® 825 gasket solutions are available in thicknesses from 0.8 to 4.8 mm and come standard with an anti-stick coating for better removal. The standard color is cranberry.

In addition to the above properties of gasket solutions made out of materials from the novatec^® product family, solutions using novatec^® SPECIAL have excellent adaptability and are therefore ideal for applications with irregular flange surfaces.

novatec^® SPECIAL gasket solutions are available in thicknesses from 1.0 to 3.0 mm and come standard with an anti-stick coating for better removal. The standard color is golden yellow.

Custom geometries made from novatec^® INDUSTRIAL are an economical alternative to mineral flat gaskets, have good residual stress, are very adaptable and have very good thermal and chemical resistance thanks to the high graphite content.

novatec^® INDUSTRIAL gasket solutions are used everywhere media-conducting systems (e.g. oil, water, steam, weak acids and alkalis) must work reliably and with low loss at high temperatures (max. 250 °C).

novatec^® INDUSTRIAL gasket solutions are available in thicknesses from 0.5 to 4.0 mm and can also be equipped with an anti-stick coating for better removal on request. The standard color is black. Customizations (other colors) or finishing such as self adhesive properties or further compaction are possible at any time on request.

novatec^® HPN gasket solutions are cost-effective gasket solutions with high temperature and media resistance compared to fiber gaskets.

Its relatively thin total thickness (0.3 - 1.0 mm) makes novatec^® HPN suitable for applications with limited space and/or budget. Other material thicknesses are available on request.
