isoTHERM®
The careful selection and optimum processing of the raw materials ensure that isoTHERM by Frenzelit shines with consistently high properties.<br/> High-temperature-resistant technical fibers pave the way for modern thermal and acoustic insulation. For decades Frenzelit has been driving the development of new material properties and finishing techniques.
![isoTHERM® 800 / 800 CG](/fileadmin/_processed_/2/9/csm_isotherm_800_e507b3a3ab.jpg)
Application temperature limit 750 °C (short peaks up to 800 °C)
These green-colored textured special glass-based products are extremely textile even at high temperatures. isoTHERM® 800 is characterized by its high temperature and chemical resistance and is harmless to health.
- Filament diameter 6-13 μm
- Incombustible (in accordance with DIN 4102)
- Loss on ignition < 3%
- SBG approval for all woven fabrics
Note:
- Temperature exposure leads to color loss. This does not affect temperature resistance!
- isoTHERM® 800 CG is the name of our needlemat product line.
Other products isoTHERM® 800 / 800 CG
![Cords](/fileadmin/produkte/isolationen/isolationsmaterial/schnuere/schnuere_portfolio_frenzelit.jpg)
Cords
![Packings Packungen Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/packungen/Packungen_Portfolio_Frenzelit.jpg)
Packings
![Sleevings Schläuche von Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/schlaeuche/Schlaeuche_Portfolio_Frenzelit.jpg)
Sleevings
![Woven Tapes Gewebebänder Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebebaender/gewebebaender_portfolio_frenzelit.jpg)
Woven Tapes
![Woven Fabrics Gewebe Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebe/gewebe_portfolio_frenzelit.jpg)
Woven Fabrics
![Needlemats Nadelvliese Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/nadelvliese/nadelvliese_portfolio_frenzelit.jpg)
Needlemats
Possible coatings for isoTHERM® 800 / 800 CG
Application temperature limit 800 °C (short peaks up to 900 °C)
Very resistant to high temperatures thanks to a special finish: This white fabric maintains its properties even at maximum application temperatures. isoTHERM® HT has extremely high abrasion resistance and drapeability and is harmless to health.
- Filament diameter 6-13 μm
- Incombustible (in accordance with DIN 4102)
- Loss on ignition < 2%
Note: HT finish only available on woven fabric!
Other products isoTHERM® HT
![Woven Fabrics Gewebe Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebe/gewebe_portfolio_frenzelit.jpg)
Woven Fabrics
![Needlemats Nadelvliese Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/nadelvliese/nadelvliese_portfolio_frenzelit.jpg)
Needlemats
Application temperature limit 850 °C (short peaks up to 1000 °C)
Chemically treated E-glass is the base material. The components that melt at a low temperature are eliminated from the E-glass fibers in the process, which increases temperature resistance. isoTHERM® 1000 products have a light blue color and are extremely textile, very skin friendly and harmless to health.
- Filament diameter 6 μm - 9 μm
- Incombustible (fire class A1 woven fabric approval according to DIN 4102)
Note: Temperature exposure leads to color loss. This does not affect temperature resistance!
Other products isoTHERM® 1000
![Cords](/fileadmin/produkte/isolationen/isolationsmaterial/schnuere/schnuere_portfolio_frenzelit.jpg)
Cords
![Packings Packungen Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/packungen/Packungen_Portfolio_Frenzelit.jpg)
Packings
![Sleevings Schläuche von Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/schlaeuche/Schlaeuche_Portfolio_Frenzelit.jpg)
Sleevings
![Woven Tapes Gewebebänder Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebebaender/gewebebaender_portfolio_frenzelit.jpg)
Woven Tapes
![Woven Fabrics Gewebe Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebe/gewebe_portfolio_frenzelit.jpg)
Woven Fabrics
![Needlemats Nadelvliese Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/nadelvliese/nadelvliese_portfolio_frenzelit.jpg)
Needlemats

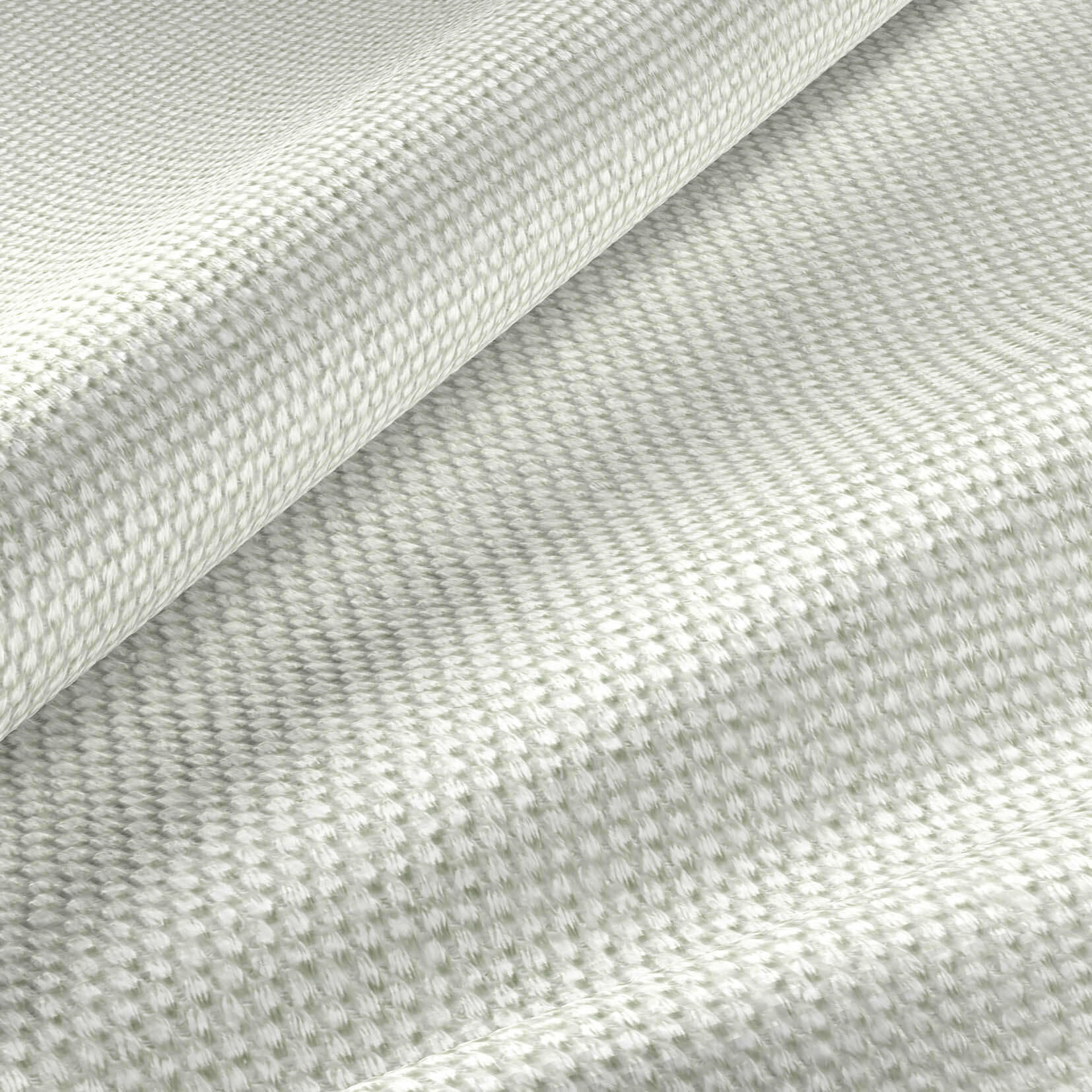

Application temperature limit 1050 °C (short peaks up to 1100 °C)
High-temperature-resistant SiO2 special glass fibers are the base material of these products. Properties include low thermal conductivity and ultra-low heat storage. isoTHERM® S / ST is skin friendly and harmless to health.
- Filament diameter 6 - 9 μm
- Incombustible (in accordance with DIN 4102)
- Loss on ignition (S-type) < 8%
- Loss on ignition (ST-type) < 3%
- SBG approval for all woven fabrics
Other products isoTHERM® S / ST
![Cords](/fileadmin/produkte/isolationen/isolationsmaterial/schnuere/schnuere_portfolio_frenzelit.jpg)
Cords
![Packings Packungen Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/packungen/Packungen_Portfolio_Frenzelit.jpg)
Packings
![Sleevings Schläuche von Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/schlaeuche/Schlaeuche_Portfolio_Frenzelit.jpg)
Sleevings
![Woven Tapes Gewebebänder Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebebaender/gewebebaender_portfolio_frenzelit.jpg)
Woven Tapes
![Woven Fabrics Gewebe Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/gewebe/gewebe_portfolio_frenzelit.jpg)
Woven Fabrics
![Needlemats Nadelvliese Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/nadelvliese/nadelvliese_portfolio_frenzelit.jpg)
Needlemats
Application temperature limit 1050°C (short peaks up to 1100 °C)
isoTHERM® BCT products are high-performance fibers with an SiO2 content of at least 94%. Low thermal conductivity, low smoke and odor as well as flexible, easily processed final material characteristics are the outstanding properties of this product.
- Skin friendly and harmless to health
- Filament diameter 6-9 µm
- Incombustible (in accordance with DIN 4102)
Note: isoTHERM® BCT is offered exclusively as needlemats!
Other products isoTHERM® BCT
![Needlemats Nadelvliese Frenzelit](/fileadmin/produkte/isolationen/isolationsmaterial/nadelvliese/nadelvliese_portfolio_frenzelit.jpg)
Needlemats
