Gasket solutions made from technical films

Like our novaform® soft gaskets, novaform® SOFT COMPOUND gasket solutions are primarily comprised of fibers and fillers.

What makes custom solutions with novaform® SOFT COMPOUNDS different is that they are designed for sealing liquid media in the price-sensitive automotive aftermarket.

novaform® SOFT COMPOUND gaskets are also suitable as a separating layer, e.g. for galvanic, thermal or acoustic decoupling.


novaform® SOFT COMPOUNDS brochure

Product details

Type Binder Density* Standard thicknesses Adaptability Standard color
novaform® 2100 NBR 1.33 g/m³ 0.3 - 1.0 mm very good dark gray
novaform® 2150 SBR 1.50 g/m³ 0.3 - 0.8 mm good gray
novaform® 2200 NBR 1.55 g/m³ 0.3 - 1.0 mm excellent dark gray
novaform® 2500 NBR 1.80 g/m³ 0.3 - 1.0 mm good white

*Modal value (typical value)

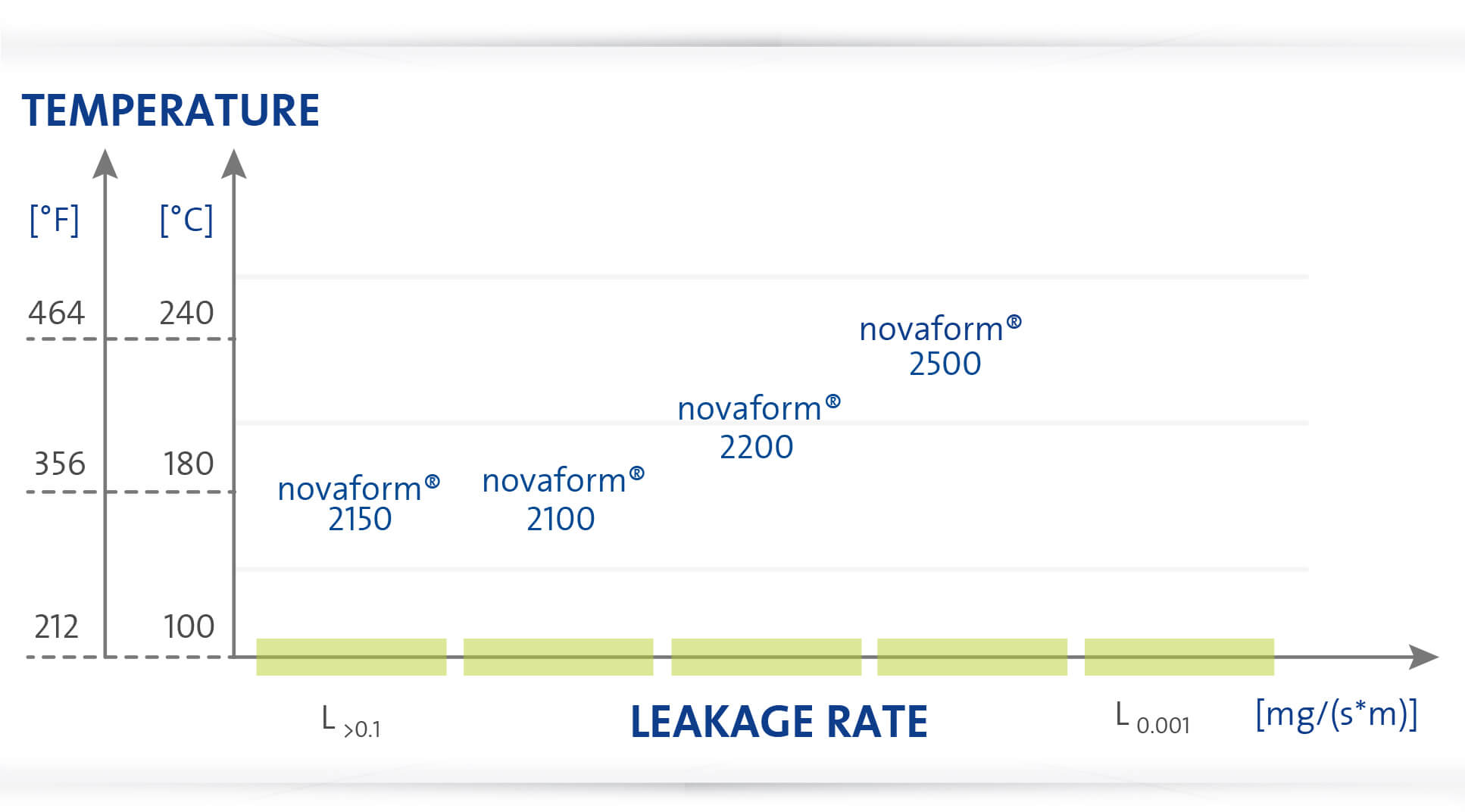

Application areas: Gaskets

The specifications depend on the internal pressure level and surface pressure and are therefore an estimate and not fixed application limits.
Due to the variety of different applications, it is not possible to consider specific approval requirements.
